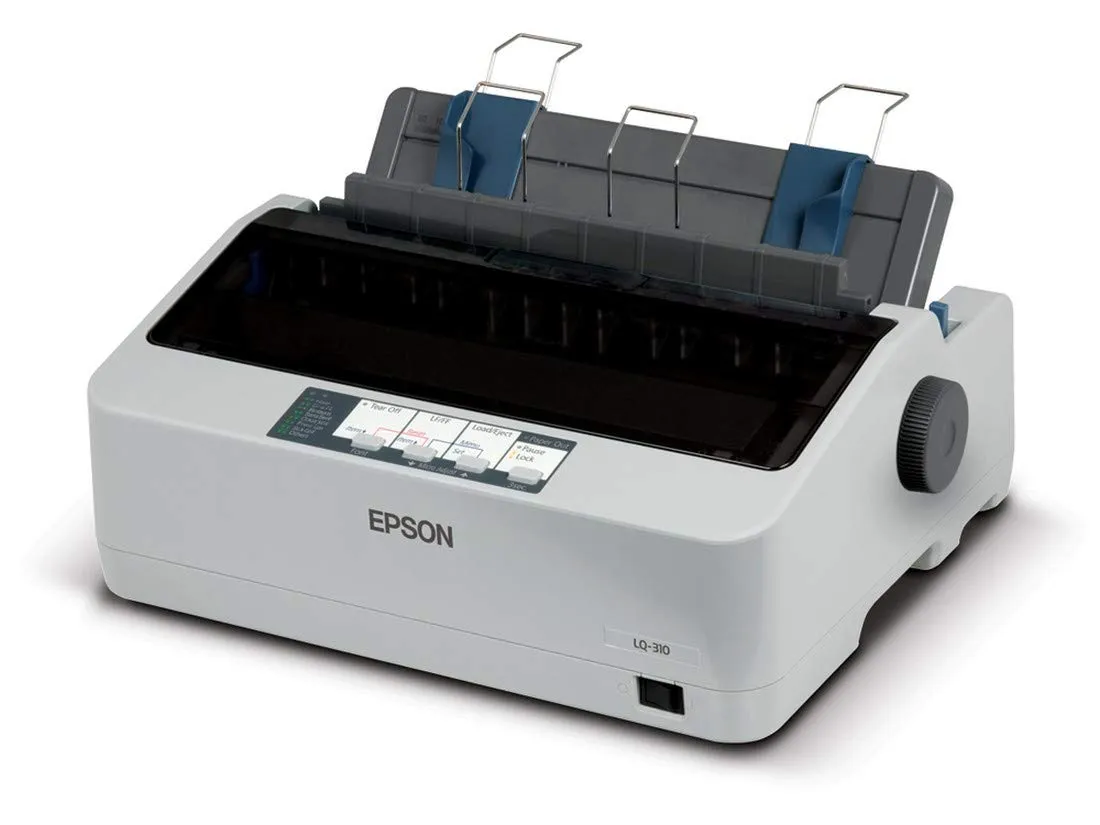

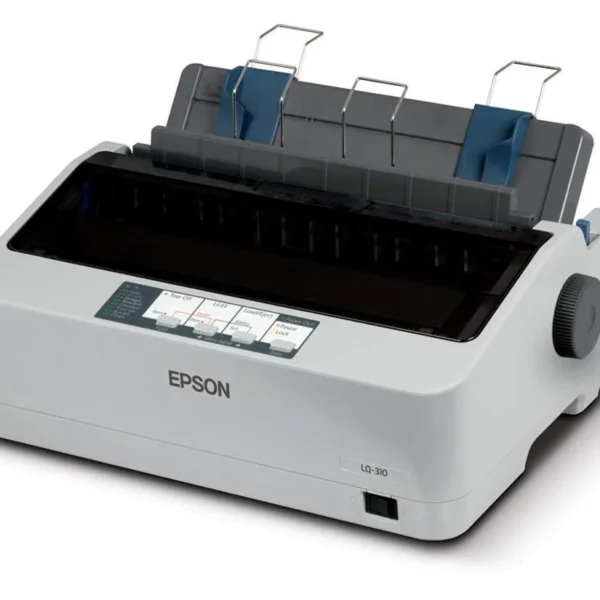

Epson Dot Matrix Printer 24 Pin LQ-310

Specification Details Printing Technology Print Method Impact dot matrix Control Panel 4 switches and 5 LEDs Print Direction Bi-direction with logic seeking Number of Pins in Head 24 pins Control Code ESC/P2 and IBM PPDS emulation Reliability MTBF Approx. 10,000 POH (25% Duty) Printhead Life Approx. 400 million strokes/wire Mean Print Volume Between Failure (MVBF) Approx. 20 million lines (Except print head) Print Characteristics Character Sets Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 Bitmap Fonts Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional Scalable Fonts Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. – 32pt. (every 2pt.) Barcode EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet Paper Path Manual Insertion Rear in, Top out Push Tractor Rear in, Top out Paper Media Cut Sheet (Single Sheet) Length: 100 ~ 364 mm (3.9 ~ 14.3″) Width: 100 ~ 257 mm (3.9 ~ 10.1″) Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055″) Cut Sheet (Multi-part Forms) Length: 100 ~ 364 mm (3.9 ~ 14.3″) Width: 100 ~ 257 mm (3.9 ~ 10.1″) Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126″) (Total) Envelope (No.6) Length: 92 mm (3.6″), Width: 165 mm (6.5″), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205″) (Total) Envelope (No.10) Length: 105 mm (4.1″), Width: 241 mm (9.5″), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205″) (Total) Continuous Paper (Single Sheet) Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0″) Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0″) Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126″) (Total) Continuous Paper (Multi-part Forms) Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0″) Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0″) Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126″) (Total) Roll Paper Width: 216 mm (8.5″), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035″) Consumables Ribbon Cartridge Black Approx. 2.5 million characters (Draft 10 cpi, 48 dots/character) Environmental Conditions (Operating) Temperature 5 ~ 35°C Humidity 10 ~ 80 % RH Acoustic Noise Acoustic Noise Approx. 53 dB(A) (ISO 7779 pattern) Input Data Buffer Input Data Buffer 128KB
