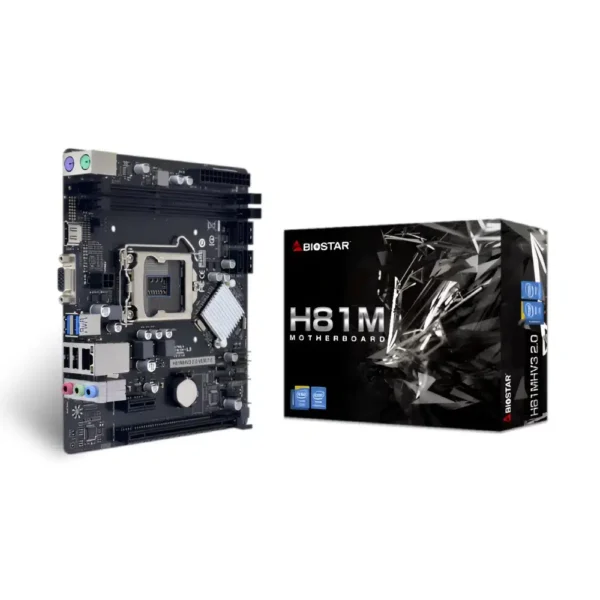

Biostar H81MHV3 DDR3 Motherboard For Intel 4th Gen

Component Description Chipset Intel H81 CPU SUPPORT Intel® Core™ i7 LGA 1150 Processor Intel® Core™ i5 LGA 1150 Processor Intel® Core™ i3 LGA 1150 Processor Intel® Pentium® LGA 1150 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory INTEGRATED VIDEO By CPU model Supports DX11.1 STORAGE 2 x SATA III Connectors (6Gb/s) * Specifications vary by CPU types 2 x SATA II Connectors (3Gb/s) * Specifications vary by CPU types LAN Realtek RTL8111G – 10/100/1000Mb/s Controller AUDIO CODEC Realtek ALC662 6-Channel HD Audio USB 2 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Header EXPANSION SLOT 1 x PCI-E 2.0 x16 Slot * Specifications vary by CPU types 1 x PCI-E 2.0 x1 Slot * Specifications vary by CPU types REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x HDMI Connector 1 x VGA Port 1 x LAN Port 3 x Audio Jacks INTERNAL I/O 2 x USB 2.0 Header 2 x SATA III Connector (6Gb/s) 2 x SATA II Connector (3Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm (W x L) OS SUPPORT Supports Windows 7 / 8 / 8.1 / 10(x64) BUNDLE SOFTWARE BIO-Remote2 Smart Speed LAN ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide FEATURES Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update
